| DIN 2502 PN16 PLATE FLANGE |
|
| PN16 FLANGE, SLIP ON PLATE, PLAIN, FLAT |
|
| FLAT FACE (FF), RAISED FACE (RF) |
|
|
 |
|
| Flange Dimensions & Approximate Masses / Flange Weight |
| Germany standard flange DIN 2502 for soldering or welding Nominal Pressure 16 |
| Flansche, glatt zum löten oder schweißen DIN 2502 Nenndruck 16 |
| Brides plates a souder DIN 2502 pression nominale 16 |

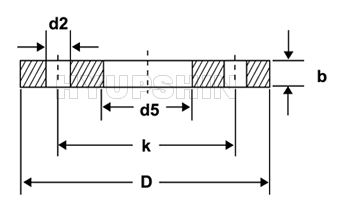

| Table DIN 2502 PN
16 PLATE FLANGE DIMENSIONS (in mm) |
Nominal Pipe Size |
Diameter of |
Flange Dia |
Flange I.D |
Thk of Flanges |
Dia of Bolt Cirlce |
No. of |
Dia of Bolt Holes |
Weight |
DN |
Pipe |
D |
D5 |
B |
K |
holes |
D2 |
KG |
| 10 |
17.20 |
90 |
17.70 |
14 |
60 |
4 |
14 |
0.60 |
| 15 |
21.30 |
95 |
22.00 |
14 |
65 |
4 |
14 |
0.67 |
| 20 |
26.90 |
105 |
27.60 |
16 |
75 |
4 |
14 |
0.94 |
| 25 |
33.70 |
115 |
34.40 |
16 |
85 |
4 |
14 |
1.11 |
| 32 |
42.40 |
140 |
43.10 |
16 |
100 |
4 |
18 |
1.62 |
| 40 |
48.30 |
150 |
49.00 |
16 |
110 |
4 |
18 |
1.85 |
| 50 |
60.30 |
165 |
61.10 |
18 |
125 |
4 |
18 |
2.46 |
| 65 |
76.10 |
185 |
77.10 |
18 |
145 |
4 |
18 |
2.99 |
| 80 |
88.90 |
200 |
90.30 |
20 |
160 |
8 |
18 |
3.61 |
| 100 |
114.30 |
220 |
115.90 |
20 |
180 |
8 |
18 |
3.99 |
| 125 |
139.70 |
250 |
141.60 |
22 |
210 |
8 |
18 |
5.41 |
| 150 |
168.30 |
285 |
170.50 |
22 |
240 |
8 |
22 |
6.55 |
| 175 |
193.70 |
315 |
196.10 |
24 |
270 |
8 |
22 |
8.42 |
| 200 |
219.10 |
340 |
221.80 |
24 |
295 |
12 |
22 |
8.97 |
| 250 |
273.00 |
405 |
276.20 |
26 |
355 |
12 |
26 |
12.76 |
| 300 |
323.90 |
460 |
327.60 |
28 |
410 |
12 |
26 |
16.60 |
| 350 |
355.60 |
520 |
359.70 |
30 |
470 |
16 |
26 |
24.08 |
| 400 |
406.40 |
580 |
411.00 |
32 |
525 |
16 |
30 |
30.20 |
| 450 |
457.00 |
640 |
462.30 |
38 |
585 |
20 |
30 |
41.67 |
| 500 |
508.00 |
715 |
513.60 |
38 |
650 |
20 |
33 |
52.87 |
| 600 |
610.00 |
840 |
616.50 |
42 |
770 |
20 |
36 |
77.58 |
| 700 |
711.00 |
910 |
716.00 |
44 |
840 |
24 |
36 |
77.13 |
| 800 |
813.00 |
1025 |
818.00 |
50 |
950 |
24 |
39 |
106.35 |
| 900 |
914.00 |
1125 |
920.00 |
54 |
1050 |
28 |
39 |
125.39 |
| 1000 |
1016.00 |
1255 |
1022.00 |
60 |
1170 |
28 |
42 |
177.99 |
NOTE:
1. Flange Facing according to DIN 2526
Flat face flange:
Form A flange, Face without any requirements
Form B flange, Face Rz=160, machined (not smoother than 40µm)
Raised face flange:
Form C flange, Face Rz=160, machined (not smoother than 40µm)
Form D flange, Face Rz=40, machined
Form E flange, Face Rz=16, machined
2. Tongue and groove according to DIN 2512
Form F flange, Tongue
Form N flange, Groove
3. Male and Female according to DIN 2513, DIN 2514
Form V13, V14, Male flange
Form R13, R16, Female flange
4.
Flange Chemfering for diaphragm-weld packings, PN64-PN400, according to DIN 2695
5. Flange Facing for lens-shaped joints, PN64-PN400, according to DIN 2696
|
|
|
|
CE PED 2014/68/EU, AD2000 W0 W9 |
ISO 9001 : 2015 |
|
|
| Production Capacity & Purchase Details |
|
|
| 1. |
Supply Flange Dimension DN15 - DN2000 (1/2" - 80") for Plate Flange, Forged Flange. |
| 2. |
Flange Material Carbon Steel: RST37.2, C22.8, S235JR, ST37, P235GH, P245GH, P250GH, ASTM A105, SS400, Q235. |
| 3. |
Flange Material Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321 etc. |
| 4. |
Flange Anti Rust: Anti Rust Oil, Black Paint, Yellow Paint Coating, Hot Dipped Galvanized, Cold Galvanized etc. |
| 5. |
Flange Monthly Output: 3000 tons per Month. |
| 6. |
Flange Delivery Terms: CIF, CFR, FOB, EXW, transport by sea, by air, by express DHL, FedEx, TNT, EMS etc. |
| 7. |
Flange Payment Terms: Wire Transfer (T/T), Irrevocable L/C at Sight etc. |
| 8. |
Flange Minimum Order Quantity (MOQ): 1Ton or 100Pcs per size. |
| 9. |
Quality Guarantee: EN10204 3.1 Certificate, Mill Certificate, Third Party Inspection, Free Replacement Service. |
| 10. |
Find More Requirements In Flanges Market. |
|
|
